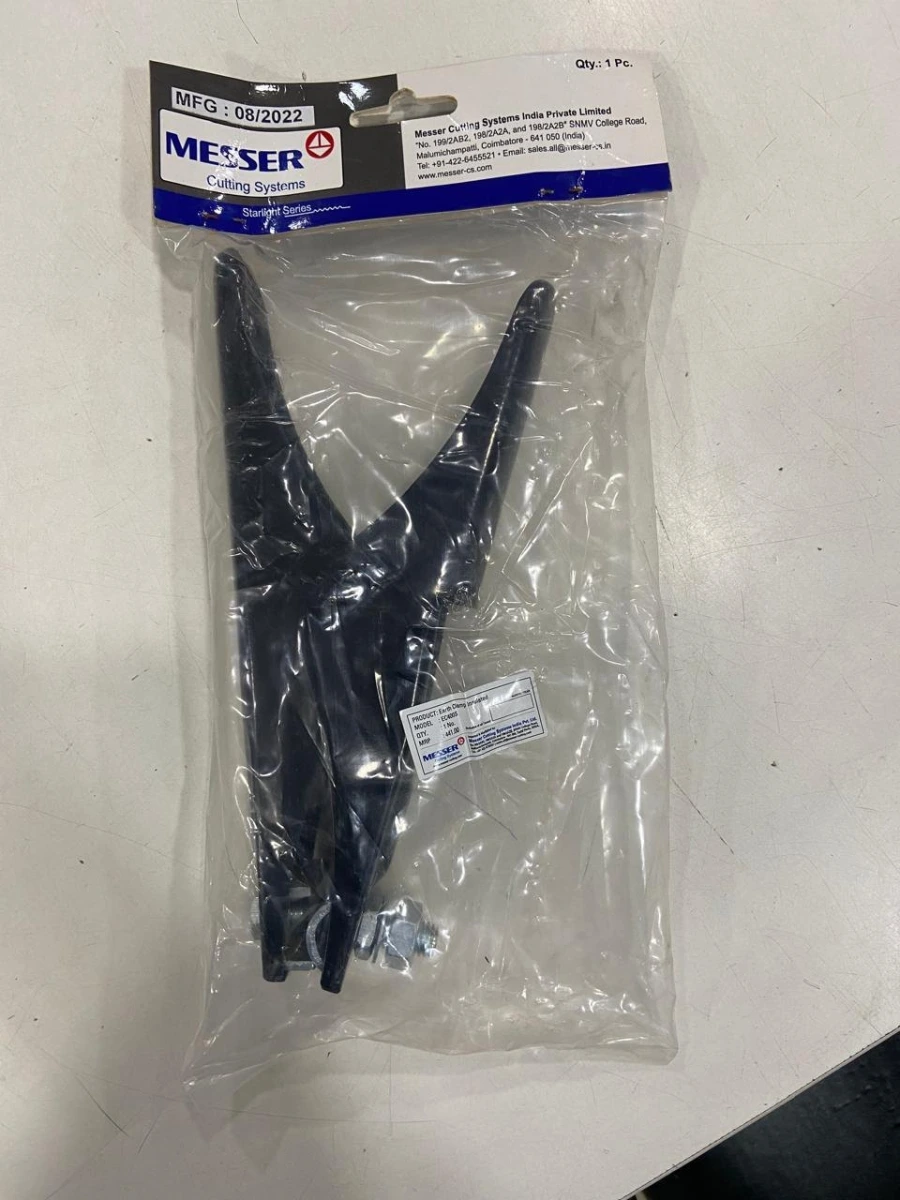

### Product Overview The EARTH CLAMP EC400 by Messer Cutting Systems is a heavy-duty 400 Amp industrial welding earth clamp engineered to establish a rock-solid, low-resistance electrical ground connection for all arc welding processes. A secure electrical ground is the vital foundation of high-quality arc welding; poor grounding causes voltage drops, erratic arc wandering, excessive spatter, and dangerous overheating of welding cables. Manufactured from robust forged brass and high-conductivity copper alloys, the Messer EC400 clamp ensures maximum current transfer from the workpiece back to the welding machine without energy loss. ### Key Engineering Features & Advantages * **400 Amp Continuous Current Rating:** Designed to conduct high welding currents efficiently across MIG/MAG, TIG, MMA, and Plasma Arc welding systems without thermal resistance build-up. * **Forged Brass & Copper Architecture:** Heavy-duty forged brass construction provides superior electrical conductivity and extreme mechanical strength compared to cheap stamped steel clamps. * **Braided Copper Shunt Straps:** Wide-opening clamping jaws are linked by thick braided copper shunt straps that ensure current flows equally through both jaw halves for maximum contact efficiency. * **High-Pressure Industrial Spring:** Equipped with a heavy-duty steel clamping spring that bites firmly onto structural steel plates, pipes, and welding tables, preventing slip even on vibrating surfaces. * **Secure Bolted Cable Terminal:** Features a precision-machined mechanical cable lug terminal that bolts welding leads down securely, eliminating electrical arcing and cable terminal burnout. ### Technical Specifications & Material Properties The EARTH CLAMP EC400 complies strictly with IEC 60974-13 safety and performance standards for arc welding earth clamps. The contact jaw faces are precision-milled to maximize surface contact area against flat plates, round pipes, and irregular structural profiles. Its mechanical hinge and spring mechanism are insulated against electrical current bypass, protecting the spring temper from weakening due to electrical ohmic heating during continuous heavy-duty welding cycles. ### Application Areas & Use Cases The superior grounding reliability of the EARTH CLAMP EC400 is critical across professional welding applications: * **Heavy Structural Steel Fabrication:** Establishing reliable ground paths on massive I-beams, plate girders, and bridge sections in structural welding bays. * **Automated MIG/MAG Welding Cells:** Providing consistent, low-resistance electrical grounding for robotic welding manipulators and rotating positioners. * **Pressure Vessel & Boiler Manufacturing:** Ensuring stable arc voltage and zero arc blow during precision X-ray quality pipe and tank welding. * **On-Site Field & Maintenance Welding:** Clamping securely onto rusty, painted, or irregular structural steel shapes during mobile construction and repair operations. ### Operational & Safety Guidelines Always attach the earth clamp as close to the active welding zone as physically possible to minimize electrical circuit impedance and prevent stray electrical currents from traveling through crane chains or building structures. Before clamping, wire-brush or grind away heavy rust, paint, or mill scale from the clamping area to ensure clean, bare-metal electrical contact. Check the cable attachment bolt periodically to ensure it remains tight and free of oxidation.
