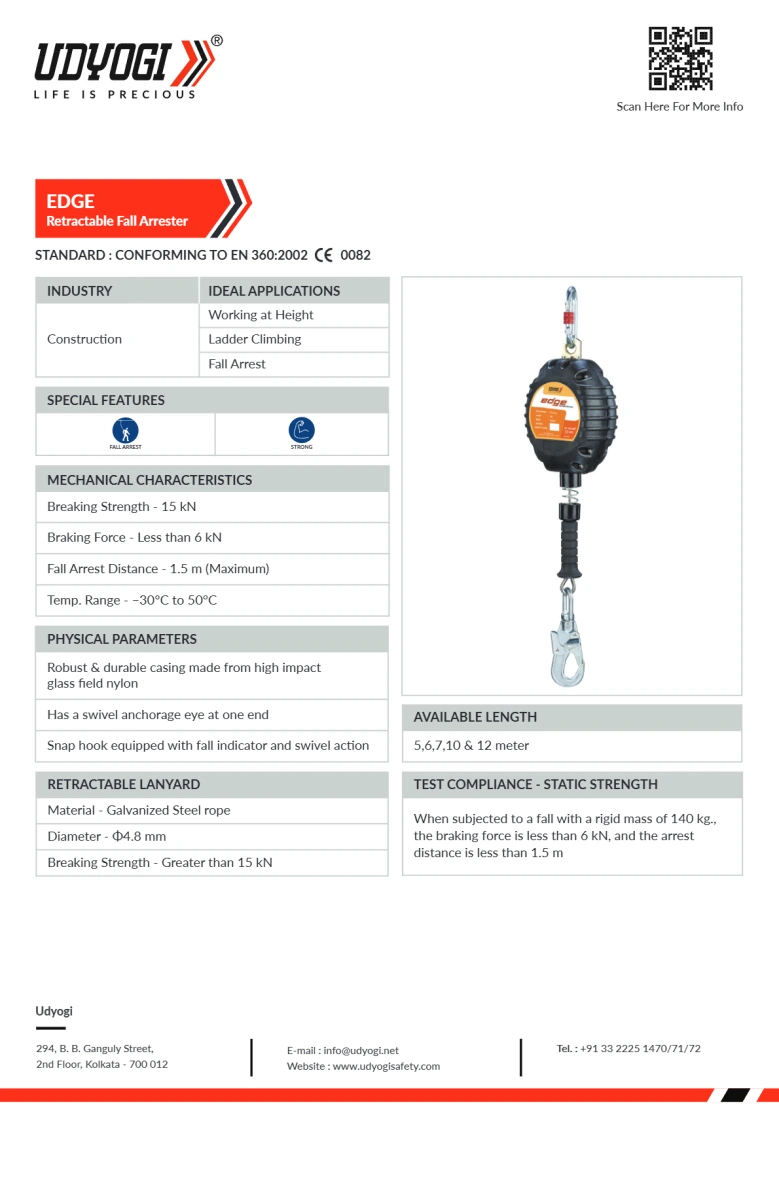

STANDARD : CONFORMING TO EN 360:2002 0082
INDUSTRY IDEAL APPLICATIONS
Construction Working at Height
Process plants Ladder Climbing
Grinding Unit Loading/Unloading point
Manufacturing Unit Bag House and vessels maintenance
SPECIAL FEATURES
FALL ARREST STRONG
MECHANICAL CHARACTERISTICS
Breaking Strength - 15 kN
Breaking Force - Less than 6 kN
Fall Arrest Distance - 2 meter(Maximum)
Temp. Range - −30°C to 50°C
PHYSICAL PARAMETERS
Robust & durable casing made
from high impact glass field nylon
Has a swivel anchorage eye at one end
Snap hook equipped with fall
indicator and swivel function
RETRACTABLE LANYARD
Material - Galvanized Steel rope
Diameter - Φ5.0 mm
Breaking Strength - Greater than 15 kN
TEST COMPLIANCE - DYNAMIC PPERFORMANCE TEST
When subjected to a fall with a rigid mass of 140 kg., the breaking force is
less than 6 kN, and the arrest distance is less than 2 meter
FEATURES

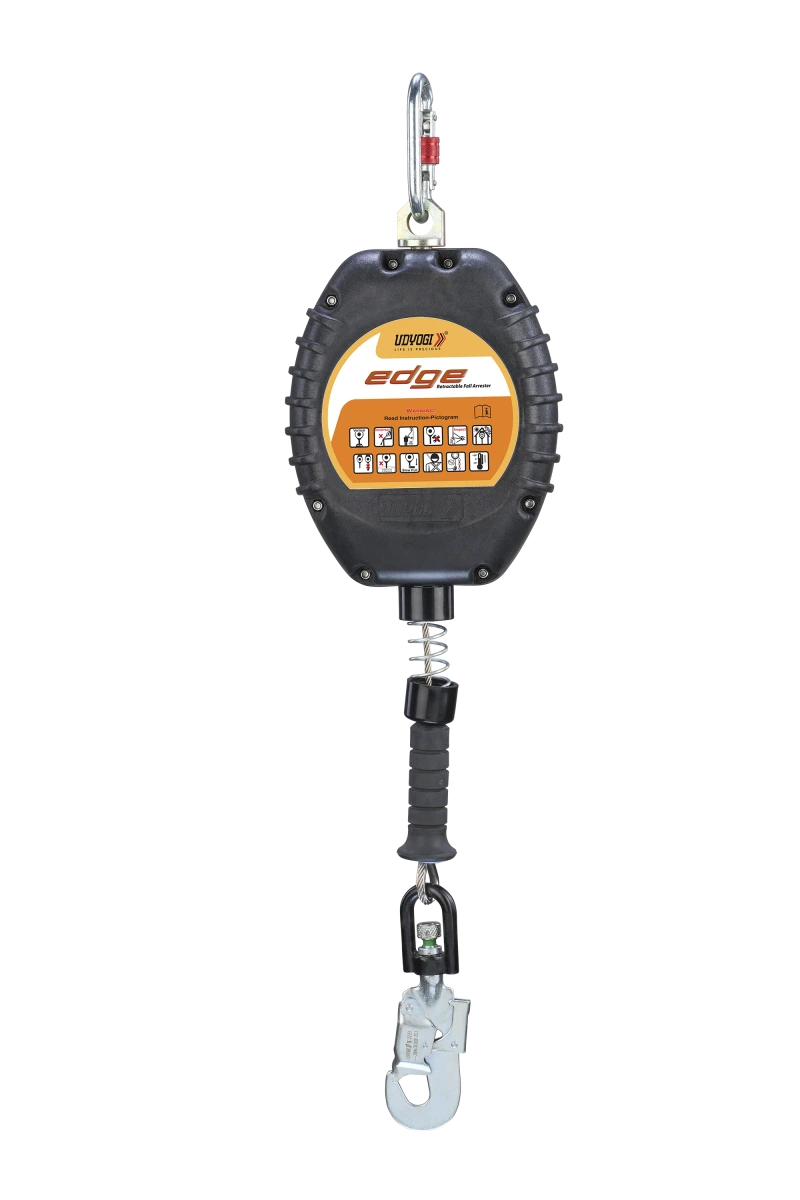

Wire rope type retractable fall arrester
High Impact resistance polyamide casing
Galvanized steel rope with swivel snap hook
system in the block immediately arrests the fall
Included nylon rope
